RH100.2020.3.33.IK
Toolholder
Part number RH1002020333IK

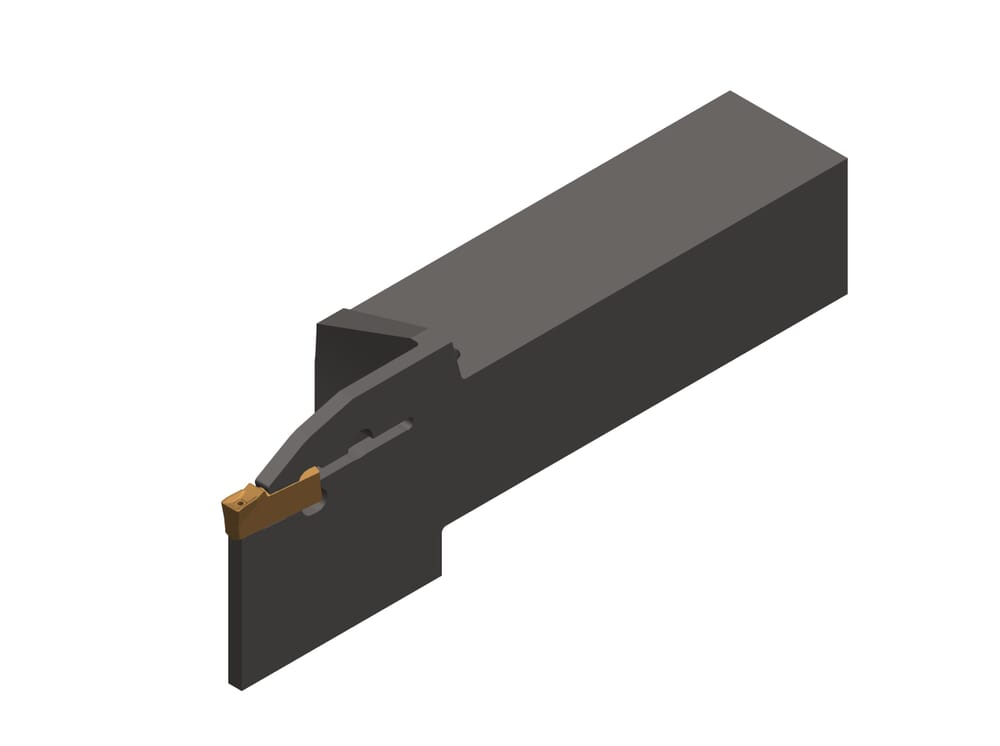

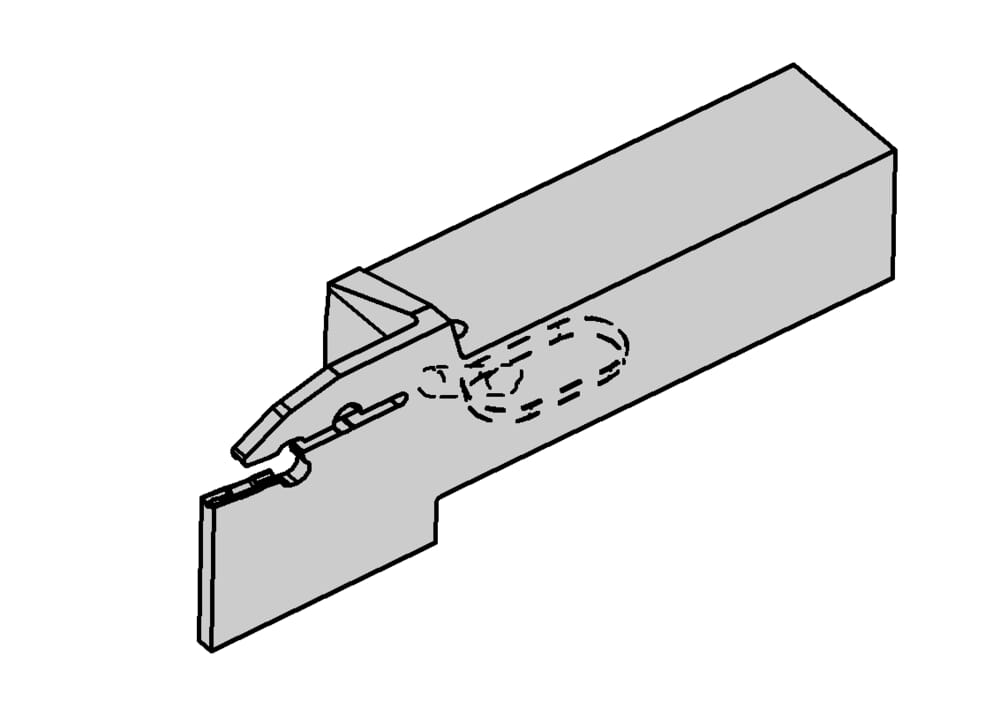

HORN Toolholder RH100.2020.3.33.IK for Turning
Please note:Technical instructions

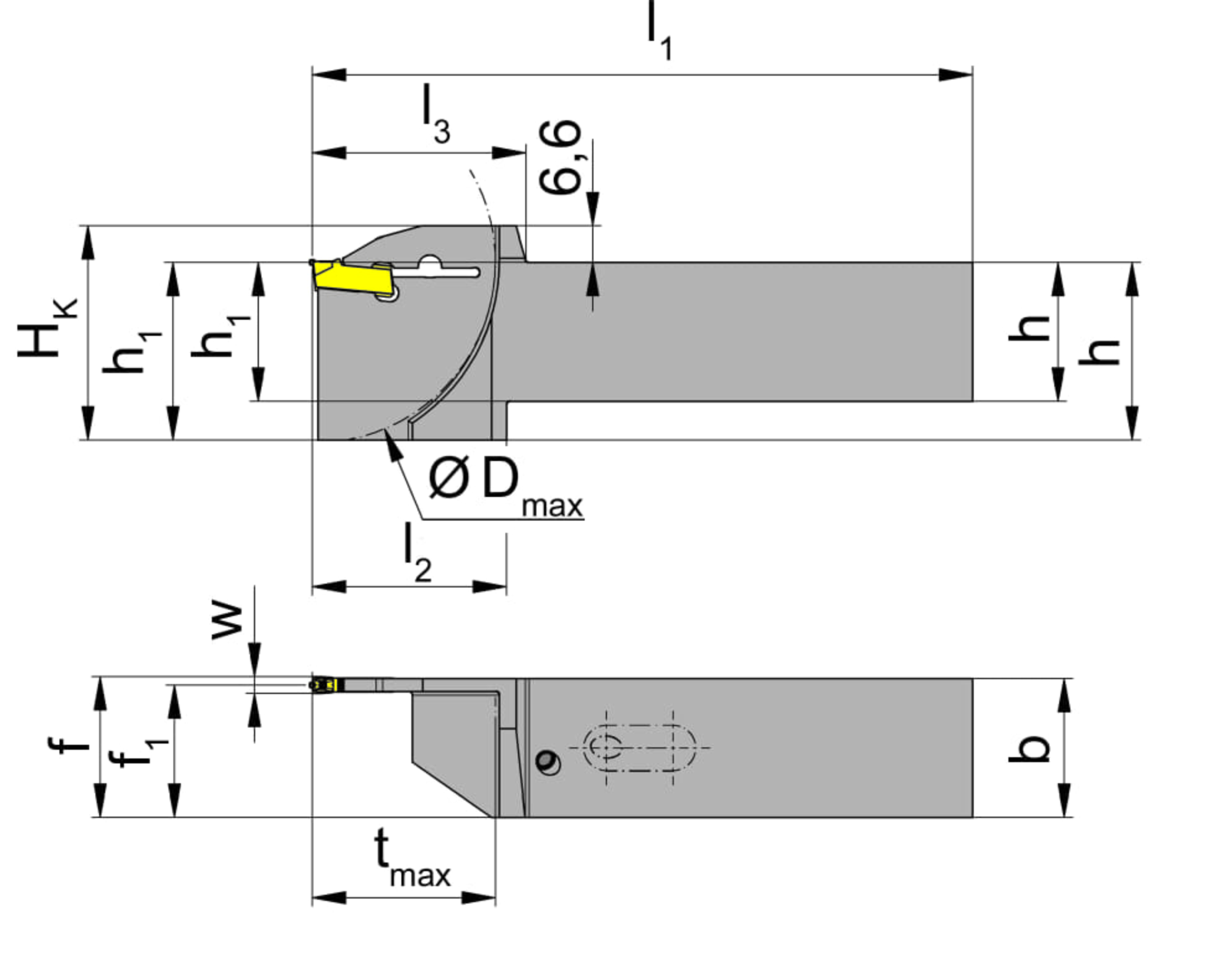

Peak height (h1)
27
mm
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
100039
DIN_CCTWS
HORN-100030059N
ISO_CCTWS
HORN100030059N$$$$$
Head length top (including cutting edge) (l3)
38.5
mm
Head length (including cutting edge) (l2)
35
mm
Adjustment dimension (formula) (f)
f1+w/2
Maximum workpiece diameter (Dmax)
65
mm
Maximum insertion depth (tmax)
33
mm
Head height (HK)
33.6
mm
Shank height (h)
20
mm
Size (Größe)
3
Total length (including cutting insert) (l1)
104
mm
Adjustment dimension cutting center (f1)
18.85
mm
Shank width (b)
20
mm
| Downloads | |
|---|---|
| RH1002020333IK_20210627_044438844.DXF | Download |
| RH1002020333IK_20230116_145416926.STP | Download |
| Download all files | |
