DSHPR.4.200.025.2.M IG3I
Toolholder
Part number DSHPR42000252MIG3I

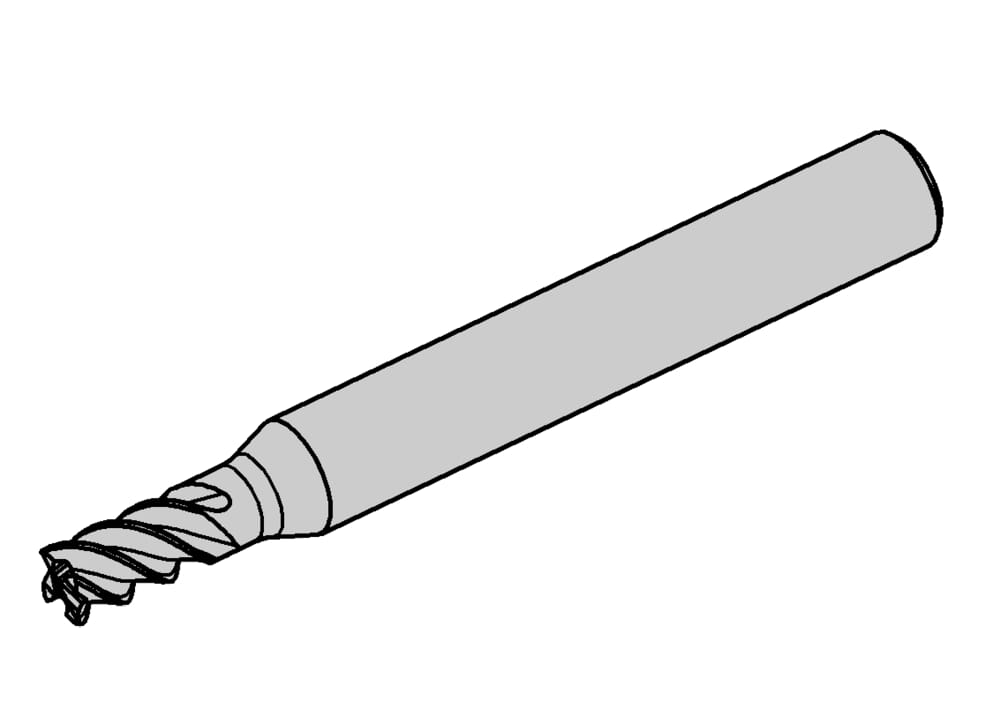

HORN Toolholder DSHPR.4.200.025.2.M IG3I for Milling
Please note:Technical instructions
Shank diameter (d2)
20
mm
Cutting diameter (d1)
20
mm
Number of teeth (Z)
4
St.
Corner radius (r)
0.25
mm
Effective cutting length (l2)
45
mm
Total length (l1)
108
mm
| Downloads | |
|---|---|
| DSHPR42000252M.DXF | Download |
| Download all files | |
