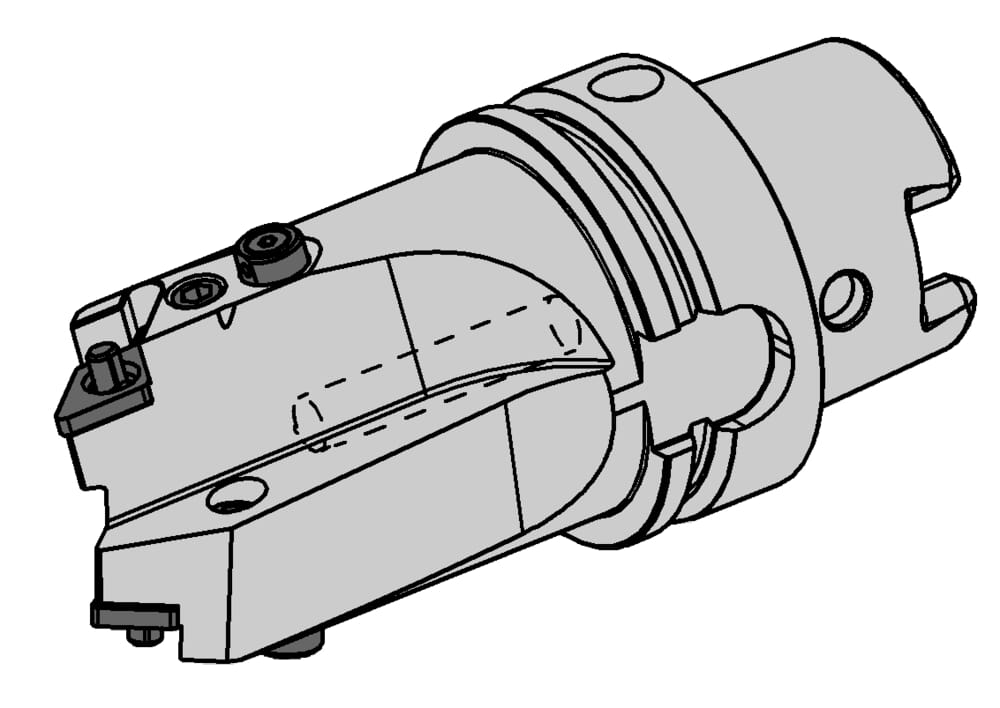

HSKT63.CNDN.01.IK
Complete tool
Part number HSKT63CNDN01IK
HORN Complete tool HSKT63.CNDN.01.IK for Turning
Please note:Technical instructions

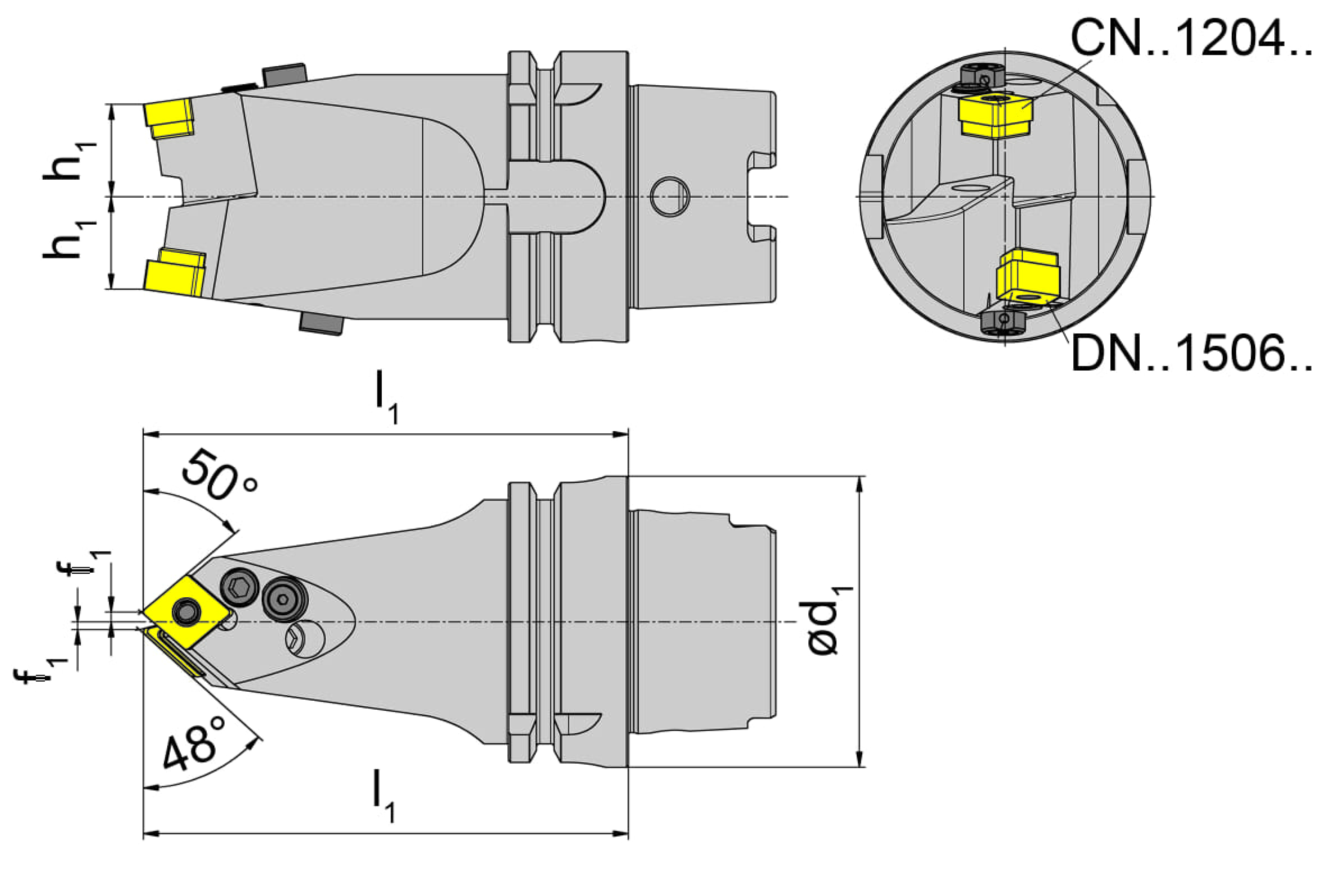

Bore diameter rotate (d1)
63
mm
Adjustment dimension cutting center (f2)
2.1
mm
Peak height from center (h1)
20
mm
ISO_CCTWS
ISO$CN1204082NA$$08
DIN_CCTWS
CN1204082N
Katalog_CCTWS
CN…1204…
DIN_CCTMS
HSK06300195
ISO_CCTMS
HSK07C0630$$$$
Total length insert (l1)
105
mm
| Downloads | |
|---|---|
| HSKT63CNDN01IK.STP | Download |
| Download all files | |
