L116.0070.00 TN35
Schneidplatte
Materialnummer L116007000TN35

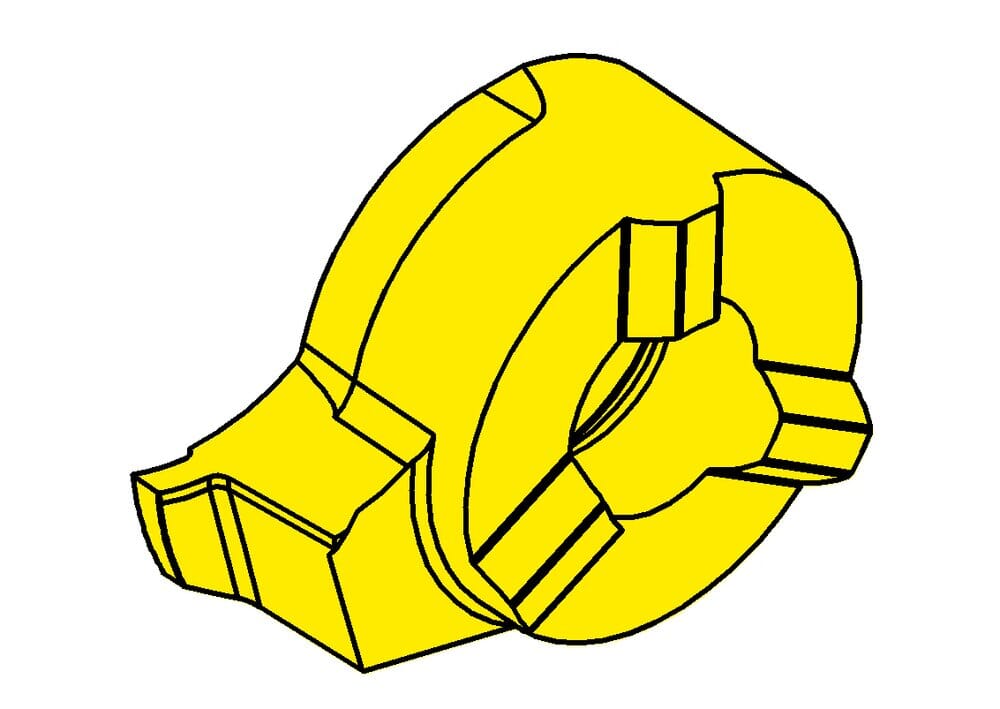

HORN Schneidplatte L116.0070.00 TN35 zum Drehen
Bitte beachten:Technologieinformationen
Kopfmaß (a)
15.7
mm
Maximale Stechtiefe (tmax)
1.2
mm
eclass-shortcut
21-18-20-11
Abstandsmaß Schneide (s1)
5.3
mm
ISO_SSC
HORN116110$84L$$$$$
DIN_SSC
HORN-11611084L
Katalog_SSC
116110L
Schneidbreite (w)
0.74
mm
Nennweite (Nw)
0.7
mm
Einstellmaß radial (f)
10.2
mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
11
mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5
mm
Kleinster Bohrungsdurchmesser (Dmin)
16
mm
Downloads | |
---|---|
L116007000_20230112_192418045.STP | Download |
L116007000.DXF | Download |
Alle Dateien herunterladen |
