628.0400.08 AS45
insert
Part number 628040008AS45

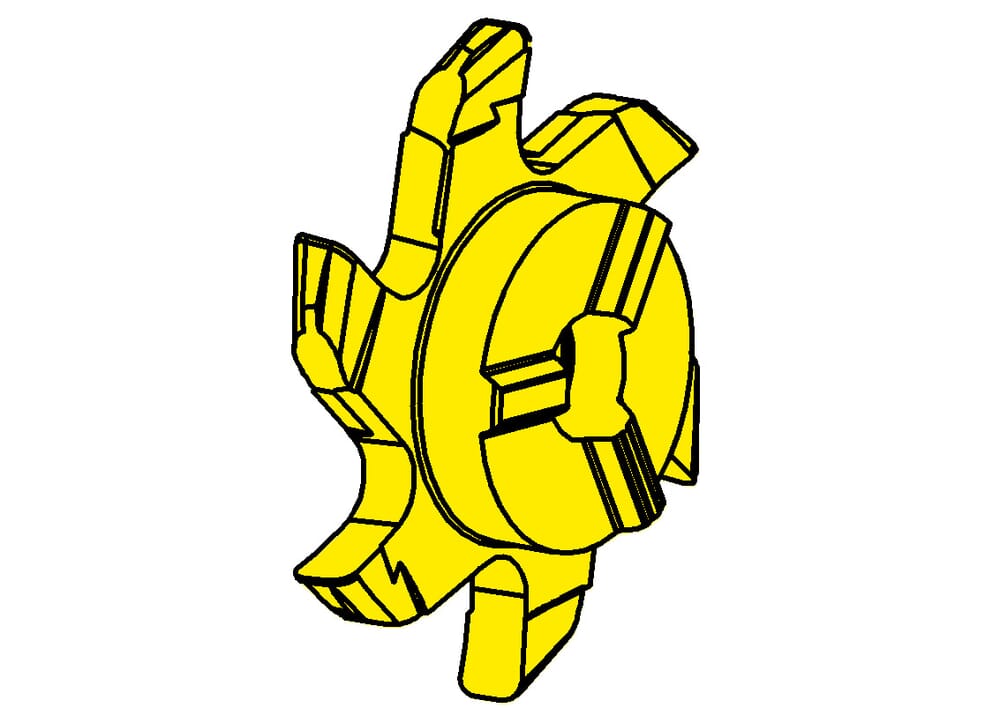

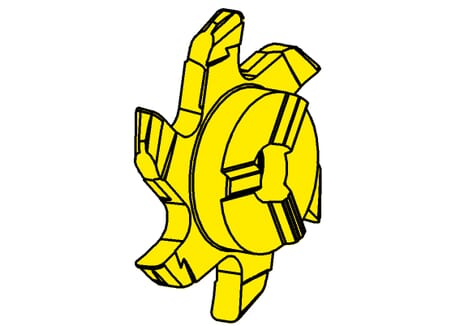

HORN insert 628.0400.08 AS45 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
6
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
plating-seat-size
0
Width of groove (w)
4
mm
Maximum milling depth/ depth of groove (tmax)
6.5
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Corner radius (r)
0.8
mm
| Downloads | |
|---|---|
| 628040008_20230112_140613286.STP | Download |
| 628040008.DXF | Download |
| Download all files | |
