DGH.4.20.2000.00 AN2P
Inserts
Part number DGH420200000AN2P

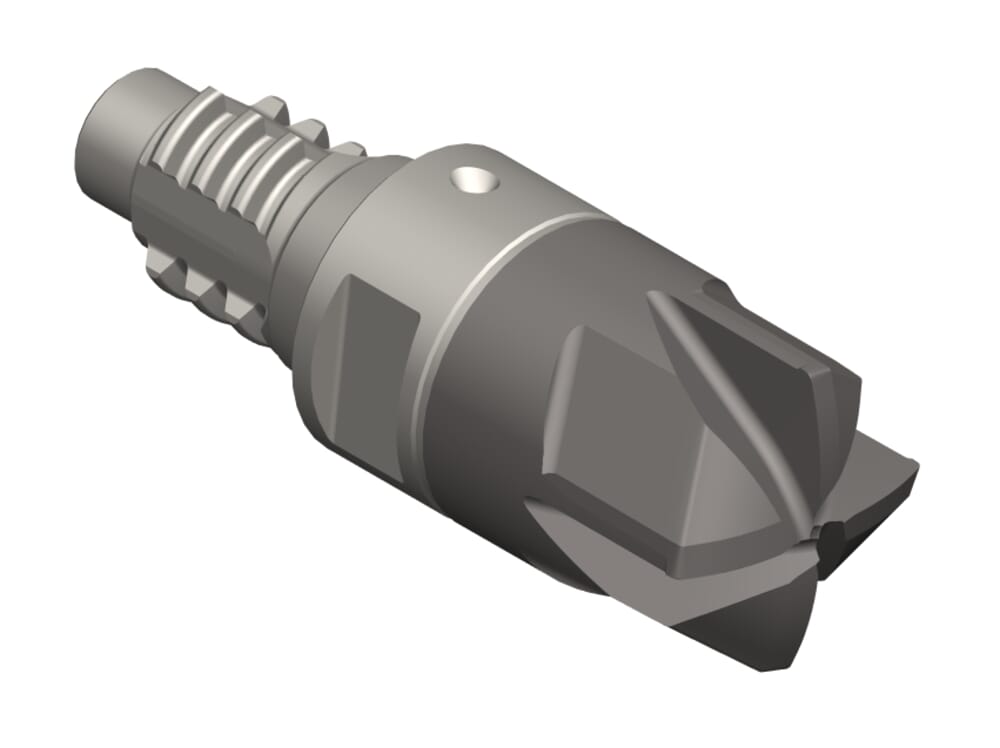

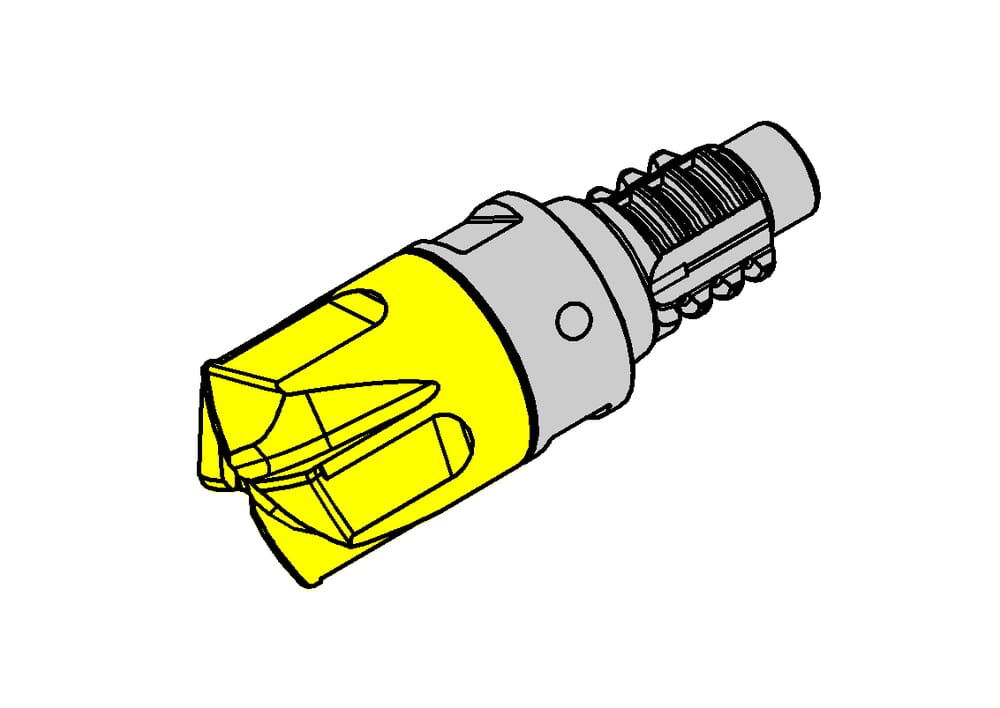

HORN Inserts DGH.4.20.2000.00 AN2P for Milling
Please note:Technical instructions
Cutting diameter (d1)
20
mm
Number of teeth (Z)
4
St.
System (System)
DG20
eclass-shortcut
21-18-06-90
ISO_SSC
HORNDG02018$0N$$$$$
DIN_SSC
HORN-DG02010N
Katalog_SSC
DG0201
Neck diameter (d3)
19.5
mm
Key range (SW)
17
mm
Effective cutting length (l2)
1.2
mm
Tool length from stop, flange (l3)
30.3
mm

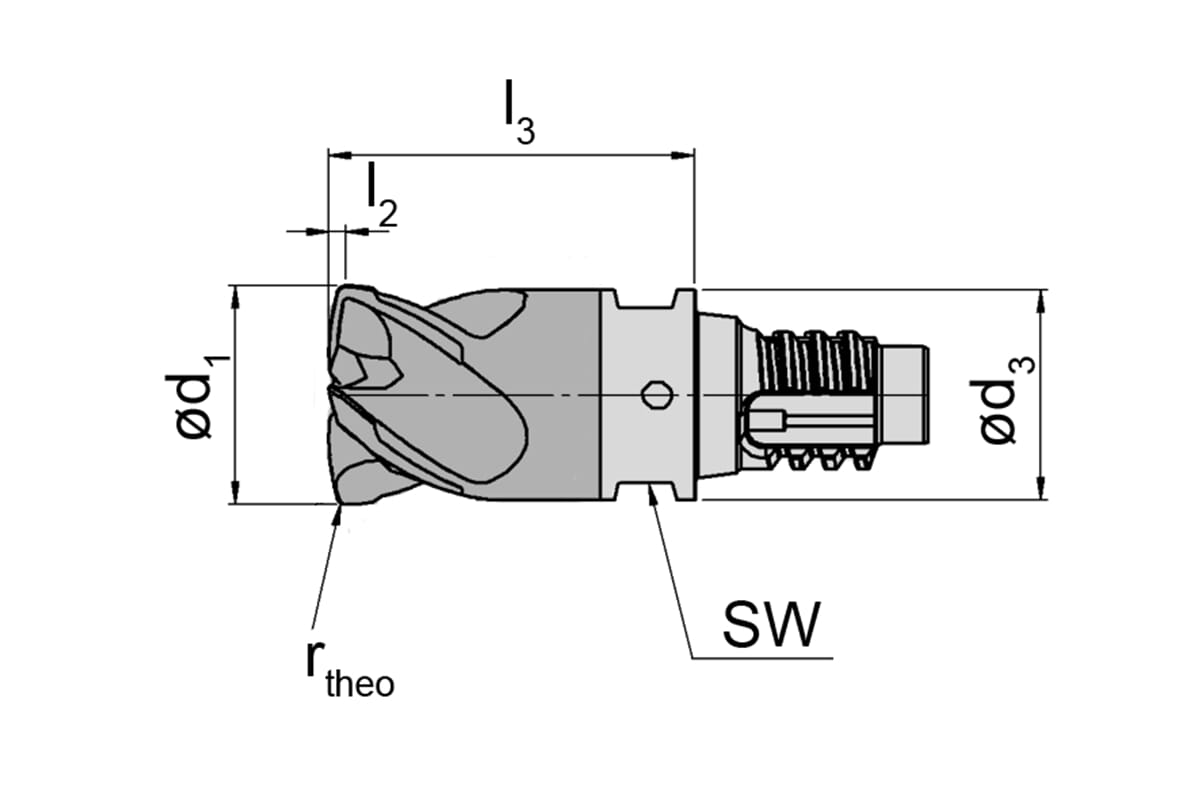

Theoretical corner radius, programmable corner radius (rtheo)
1.96
mm
