L116.0070.00 TN35
Inserts
Part number L116007000TN35
HORN Inserts L116.0070.00 TN35 for Turning
Please note:Technical instructions

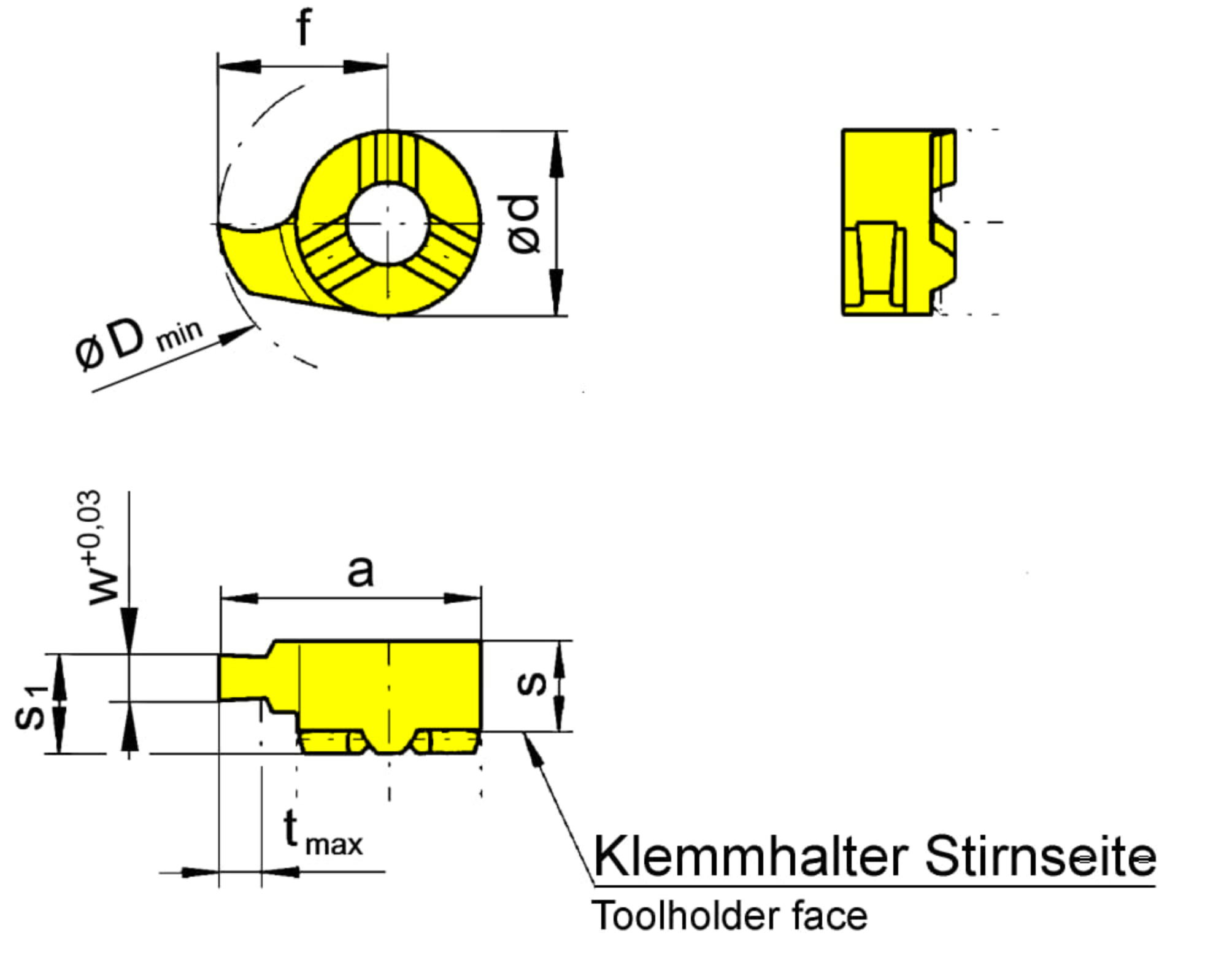

Head size (a)
15.7
mm
Maximum depth of groove (tmax)
1.2
mm
eclass-shortcut
21-18-20-11
Distance dimension cutting edge (s1)
5.3
mm
ISO_SSC
HORN116110$84L$$$$$
DIN_SSC
HORN-11611084L
Katalog_SSC
116110L
Width of groove (w)
0.74
mm
Nominal range (Nw)
0.7
mm
Setting range radial (f)
10.2
mm
Tooth diameter, head diameter (d)
11
mm
Cutting insert height, Cutting insert thickness (s)
5.5
mm
Smallest bore diameter (Dmin)
16
mm
| Downloads | |
|---|---|
| L116007000_20230112_192418045.STP | Download |
| L116007000.DXF | Download |
| Download all files | |
