R105.1805.2.1 TN35
Inserts
Part number R105180521TN35

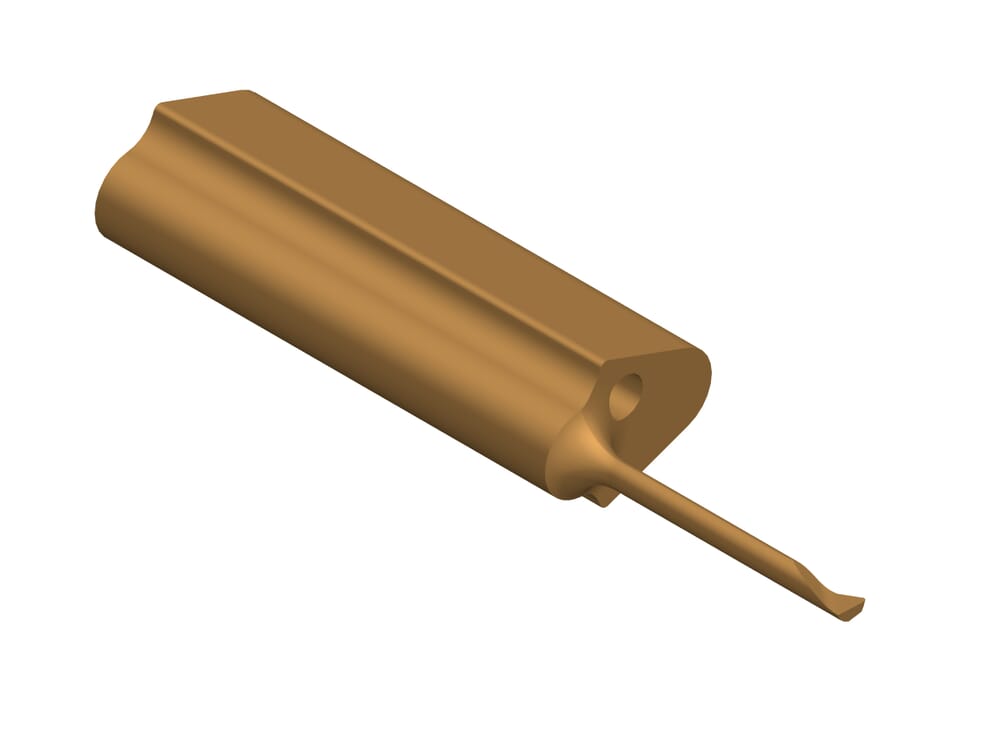

HORN Inserts R105.1805.2.1 TN35 for Turning
Please note:Technical instructions
Neck length (l2)
8
mm
Top radius (r)
0.1
mm
Head size (a)
0.9
mm
Maximum depth of groove (tmax)
0.1
mm
eclass-shortcut
21-18-20-11
Width of blank (b)
5.9
mm
ISO_SSC
HORN105123$95N$$$$$
DIN_SSC
HORN-10512395N
Katalog_SSC
105123
Neck diameter (d)
0.65
mm
Setting range radial (f)
0.5
mm
Total length (l5)
25
mm
Smallest bore diameter (Dmin)
1
mm
| Downloads | |
|---|---|
| R105180521_20230113_232600692.STP | Download |
| R105180521_20210629_162415849.DXF | Download |
| Download all files | |
